TRUBACH ULTRA is a multipurpose transfer hose, which is suitable for both irrigation and as a feeder hose，or even as a drag hose in smaller umbilical systems. Longer lengths available for some diameters.
INTERNAL DIAMETER | WALL THICKNESS | WEIGHT | BURST PRESSURE | TENSILE STRENGTH | |||||
Inch | mm | Inch | mm | Lbs/ft | Kg/m | psl | bar | X1000lbs | tons |
2 1/2 | 65.0+2.0 | 0.11 | 2.8 | 0.44 | 0.66 | 810 | 56 | 14.3 | 6.5 |
3 | 76.0+2.0 | 0.11 | 2.8 | 0.54 | 0.84 | 780 | 54 | 17.4 | 7.9 |
3 1/2 | 90.0+2.0 | 0.11 | 2.9 | 0.66 | 0.98 | 620 | 43 | 20.0 | 9.1 |
4 | 102.0+2.5 | 0.13 | 3.2 | 0.80 | 1.20 | 610 | 42 | 22.2 | 10.1 |
4 1/2 | 114.0+2.5 | 0.13 | 3.2 | 0.93 | 1.39 | 535 | 37 | 23.8 | 10.8 |
5 | 127.0+2.5 | 0.13 | 3.2 | 1.02 | 1.52 | 505 | 35 | 26.4 | 12.0 |
6 | 152.0+3.0 | 0.13 | 3.2 | 1.16 | 1.73 | 435 | 30 | 32.8 | 14.9 |
7 | 178.0+3.0 | 0.13 | 3.2 | 1.37 | 2.05 | 390 | 27 | 37.6 | 17.1 |
Note:Safety BP/WP is 2:1 (50%). For all non-hazard and/or non-flammable liquids.
Materials
• TPU Hoses
Key Features
• Special weave design ---no kinking at low pressure pumping.
• Light TPU Hose.
• Five times as abrasive resistant vs nitrile rubber.
• Operating temperature from -50°C to + 75 °C (-58°F to +167°F) for pure water.
Advantages
• Resistance to a wide range of chemicals.
• Excellent UV, ozone and weathering resistance.
• Excellent adhesion between cover/lining and the weave.
• Some diameters can be produced in lengths above 200 meters.

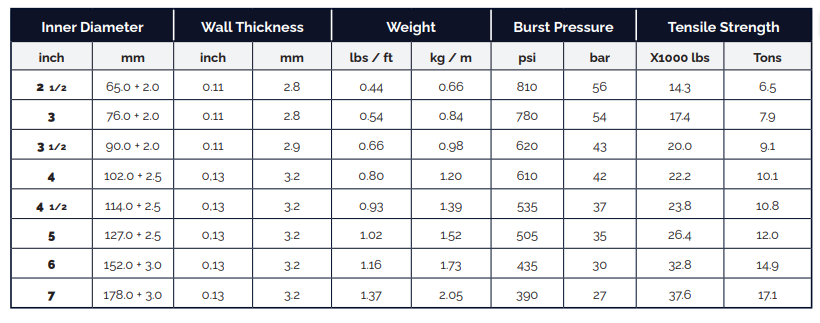

Here is the specific dimensions and parameters:
| INTERNAL DIAMETER | WALL THICKNESS | WEIGHT | BURST PRESSURE | TENSILE STRENGTH | |||||
| Inch | mm | Inch | mm | Lbs / Ft | Kg / m | Psl | Bar | x 1000 Lbs | Tons |
| 2 1/2 | 65.0 + 2.0 | 0.11 | 2.8 | 0.44 | 0.66 | 810 | 56 | 14.3 | 6.5 |
| 3 | 76.0 + 2.0 | 0.11 | 2.8 | 0.54 | 0.84 | 780 | 54 | 17.4 | 7.9 |
| 3 1/2 | 90.0 + 2.0 | 0.11 | 2.9 | 0.66 | 0.98 | 620 | 43 | 20.0 | 9.1 |
| 4 | 102.0 + 2.5 | 0.13 | 3.2 | 0.80 | 1.20 | 610 | 42 | 22.2 | 10.1 |
| 4 1/2 | 114.0 + 2.5 | 0.13 | 3.2 | 0,93 | 1.39 | 535 | 37 | 23.8 | 10.8 |
| 5 | 127.0 + 2.5 | 0.13 | 3.2 | 1.02 | 1.52 | 505 | 35 | 26.4 | 12.0 |
| 6 | 152.0 + 3.0 | 0.13 | 3.2 | 1.16 | 1.73 | 435 | 30 | 32.8 | 14.9 |
| 7 | 178.0 + 3.0 | 0.13 | 3.2 | 1.37 | 2.05 | 390 | 27 | 37.6 | 17.1 |
Note:Safety BP/WP is 2:1 (50%). For all non-hazard and/or non-flammable liquids.
