TRUBACH Premium is designed to handle smaller fields effectively, with a superior kink resistance on sharper turns. It has high TPU thickness and adhesion, giving an optimal resistance to wear and tear even on rougher surfaces.

Specification of TRUBACH Series

Materials

·TPU Hoses

Key Features

• Designed for umbilical drag systems used for distribution of slurry and manure in agricultural fields.

• Engineered with excellent tensile strength and abrasion properties.

• Circular woven with high tenacity polyester yarns.

• Operating temperature from -50°C to + 65 °C (-58°F to +149°F).

Advantages

• Available in long lengths up to 700 meters.

• Enhanced abrasion resistance.

• High diameter stability when depressurized for easy re-coupling.

• Low kink radius.

• High puncture resistance.

• Excellent UV and weathering resistance.

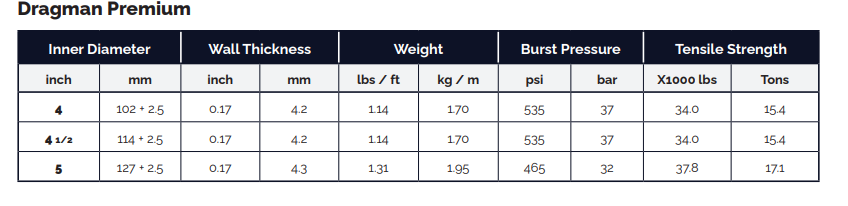

Here is the specific dimensions and parameters:

Note: Maximum working pressure is 50% of listed burst pressure (safety factor 2:1) for all non-hazard and/or non-flammable liquids.
