INTERNAL DIAMETER WALL | WALL THICKNESS | WEIGHT | MAX WORKING PRESSURE | BURST PRESSURE | TENSILE STRENGTH | ||||||
Inch | mm | Inch | mm | lbs / Ft | Kg / m | psi | bar | psi | bar | x1000 lbs | X1000kg |
2 | 51+2.0 | 0.17 | 4.4 | 0.55 | 0.82 | 600 | 41 | 2535 | 175 | 31.7 | 14.3 |
3 | 75+2.0 | 0.18 | 4.5 | 0.83 | 1.24 | 435 | 30 | 1740 | 120 | 46.6 | 21.0 |
·Note: Minimum safety factor burst to maximum working pressure is 4:1 for compressed air.
INTERNAL DIAMETER WALL | WALL THICKNESS | WEIGHT | MAX WORKING PRESSURE | BURST PRESSURE | TENSILE STRENGTH | ||||||
inch | mm | inch | mm | lbs / ft | Kg / m | psi | bar | psi | bar | x 1000 lbs | x 1000 kg |
3 | 75 + 2.0 | 0.22 | 5.5 | 1.05 | 1.55 | 600 | 41 | 2400 | 165 | 71.0 | 32.0 |
·Note: Minimum safety factor burst to maximum working pressure is 4:1 for compressed air.

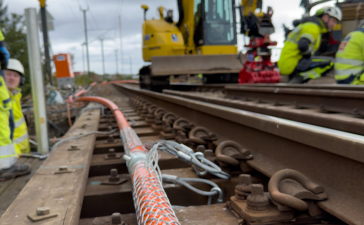

TRU-CONSTRUCTION 2 TPU hoses Compressed air for power tools and compressors. Borehole drilling.
It is designed to be a flexible and lightweight hose for compressed air. It adapts to the terrain, making it possible to easily operate in difficult areas. For your convenience, the hose has been designed to be easy to coil for storage and transportation.
Key Features
• Light, yet rugged and hard-wearing hose.
• Low weight combined with a high-pressure rating.
• The hose does not stretch when pulled and has a very high-pressure rating versus wall thickness.
• Excellent puncture resistance.
• Field proven design with long track record.
• Dual reinforcement ensures safety against failure.
Properties & Construction
• Operating temperature up to +110°C (+230°F).
• Lengths up to 40 meters.
• Color options: Orange (standard).

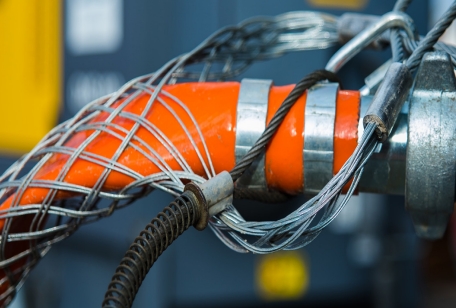

• Different coupling options available.
• Double high tensile polyester jacket hose solution.
• High tensile polyester weaves covered with an abrasion resistant TPU and lined with an oil resistant TPU.
